Syringe Filter On Pack

Polyethersulfone (PES): Hydrophilic, stable in low pH, have low levels of extractables, and exhibit low protein binding, making them suitable for many aqueous and organic solvents. PES membranes allow higher liquid flow than PTFE. Temperature resistant. pH range ~3-14 (sometimes quoted as 1-14).

The sterile syringe filter provided by Aijiren has a cellulose acetate or PES filter membrane. A sterile membrane with a pore size of 0.2um is an ideal material for sterilization and filtration, while a pore size of 0.45¦Ìm can be used for clarification. The sterile needle filter is sterilized by gamma radiation, which avoids the toxic residue caused by other sterilization methods

Low protein binding rate: These filters have a low protein binding rate. When the sample is less bound, its fluidity increases, and it also has better diffusion properties. Samples purified with PES filters can produce better results by tolerating slight changes in their density-related properties.

PES syringe filter has the characteristics of hydrophilicity, low protein binding, high flow rate and good chemical stability. In addition, it also contributes to oxidation stability, high heat and low concentration of extractable elements. Aijiren’s PES syringe filters are ideal for ion chromatography, tissue culture filtration, protein, nucleic acid and high temperature liquid filtration. It helps you get accurate results in sensitive analysis of ionic analytes.

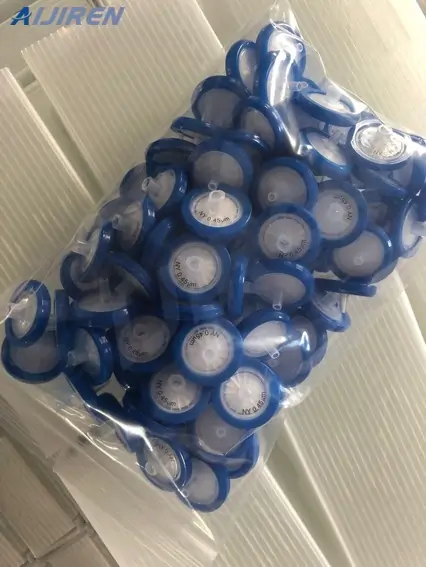

Aijiren’s Syringe Filter is usually 100pcs/pack. Generally speaking, it is packaged in a plastic box. If the Syringe Filter is packaged in a plastic box, the Syringe Filters will not squeeze each other. The recommended minimum order quantity is 30 boxes.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. t. In HPLC analysis and IC analysis, syringe filters can be used to filter sample solutions, which is an important step in sample pretreatment.

Syringe filters are a fast, convenient and reliable filter tool that is routinely used in laboratories. No need to replace membranes or clean filters, which eliminates the need for complex and time-consuming preparations. Widely used in pre-sample filtration, particle removal, and aseptic filtration of liquids and gases. This method is suitable for rinsing small samples before loading into HPLC and GC, and is often used in disposable syringes.

They are also very useful in the protection of vacuum pump pipelines and have the qualities of high absorption and retention capacity. Due to their advantages, these syringes can be used in laboratory situations as well as industrial applications.

Sterile filtration is used in many applications: serum-containing or non-serum-containing media that supports the growth of cell cultures, reagents or solutions containing sensitive components that will degrade during high temperature processing, and when there is no autoclave, filtration should be added to the sterile growth media supplement Liquid, filter samples to avoid microbial growth during storage, filter buffers, remove particulate matter and avoid microbial growth during storage, filter biological samples to be analyzed, avoid microbial contamination of expensive equipment, filter environmental samples to be analyzed, filter fermentation liquids, Further purification or analysis.

Disposable syringe filters are widely used in labs for quick and efficient filtering, material purification or even sterilization for solutions <250mL, to avoid setting ups of Buchner filters or similar.

The MCE membrane filter provides researchers with the lowest combined filter. Due to their extremely low binding characteristics, these filters provide higher throughput than competing products and reduce filter replacement when filtering protein solutions.

Hydrophobic PTFE (Polytetrafluoroethylene) syringe filters are suitable for gaseous and organic solutions, with excellent performance for high corrosive samples. It is possible for an extended sampling range using hydrophobic PTFE filters for wider chemical resistance to aggressive substances and outstanding temperature stability. A PTFE syringe filter is an ideal choice for filtering and de-gassing chromatography solvents.

The use of PTFE syringe filters can be used for corrosive solvents, aerosol sampling, degassing agents, exhaust applications and organic-based HPLC filtration. The syringe filter has a variety of different filter covers, and has a wide range of chemical compatibility, and has strong chemical stability and inertia.

Another way to determine the micron size of columns, 0.45 um for >3 um, and 0.22 um for <3um. 0.45 um membranes are typically used for general filtration and particle removal while 0.2/0.22um membranes, or sterilizing-grade membranes, are most commonly used for solution sterilization (bacteria removal).

13 mm Syringe Filters: For sample volumes <10 mL range; Ideal choice for most applications; Holdup (dead) volume is <15 ul; Female inlet luer lock; Maximum operation pressure <15 bar; Bubble point: Hydrophilic 2-3 bar; Hydrophobic 1-1.2 bar.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.
In addition, chromatography commonly used in environmental analysis requires that no inorganic contaminants be introduced during sample pretreatment.

This nylon membrane can be used for alkaline blotting and fixation, but if fixing methods such as baking and ultraviolet rays are used, higher nucleic acid detection sensitivity can be obtained. Since the nylon membrane is a hydrophilic membrane, it does not need to be immersed in ethanol, methanol and other solutions for activation. This product is only for scientific research by professionals, and must not be used for clinical diagnosis or treatment, or used for food or medicine, and must not be stored in ordinary residences. For your safety and health, please wear lab coats and disposable gloves for operation.

Sample preparation for high-throughput Ultra High Performance Liquid Chromatography (UHPLC)/High Performance Liquid Chromatography (HPLC) analysis can be time consuming when using multiple consumables such as a syringe, syringe filter, sample vial, cap, and septum. Aijiren HPLC filters result in faster sample preparation than the normal syringe filter method.

Aijiren disposable PVDF syringe filter devices are designed to provide clear filterate of aqueous and organic solutionsfrom small volumes up to 100 mL.
PVDF syringe filters are made of hydrophilic PVDF membrane and a polypropylene overmold housing.

Product applications: water purification, HPLC sample preparation, mobile phase solution filtration, cell culture, microbial filtration or sampling, protein precipitate removal, particle removal and monitoring, QC analysis, content consistency, dissolution testing, environmental sampling, food analysis. Generally speaking, 0.45 ¦Ìm pore size is suitable for removing particles from samples or the mobile phase solution of chromatography equipment, and 0.22 ¦Ìm is suitable for filtering microorganisms.

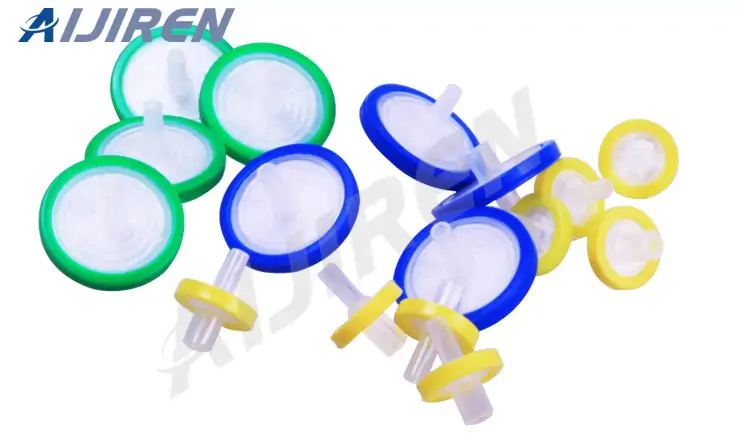

Aijiren’s Syringe Filters are high quality, well packaged and sold at a fair competitive price. They are available in most of the major membrane materials including Nylon, PTFE, PES, MCE, PVDF, CA, PP, and GF which are supplied in 13mm, 17mm, 25mm and 30mm formats in virgin polypropylene housings.

With PES syringe filter membrane mechanically strong character, it can handle high-temperature liquids, with great flow rate (better than PTFE), and low protein binding. With these features, PES syringe filters offer superior performance for use with biological samples and media culture. Workable pH range ~3-14.
Nylon: Nylon membrane filters are hydrophilic, flexible, tear-resistant, and autoclavable. They are resistant to a range of organic solvents and suitable for use with high pH samples. Nylon binds proteins. Unsuitable for acidic solutions. pH range ~3-14.
MCE (Mixed Cellulose Ester) syringe filters are an ideal choice when biological samples are involved. Mixed Cellulose is a hydrophilic membrane offering both low protein binding coefficients and exceptional flow rates.

The PTFE Syringe Filter in the picture has an aperture of 0.22, an outer diameter of 25mm, and a purple color. Aijiren also offers many other colors of Syringe Filter, such as yellow, pink, blue, green, etc. Customers can choose according to their preferences . The Syringe Filter produced by Aijiren can be equipped with many different types of filter membranes, which can be selected according to the reagents that customers need to filter.

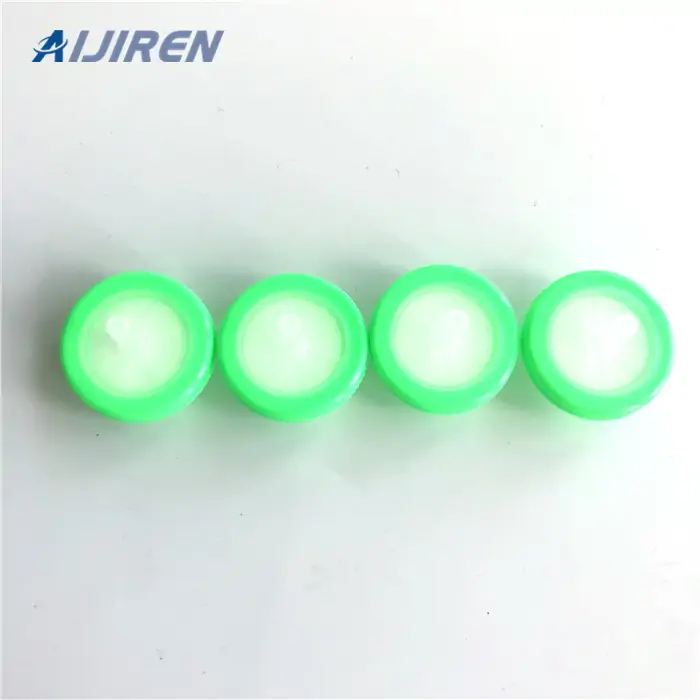

The nylon membrane used in the syringe filter has high mechanical strength, chemical stability, can be tolerated by most organic solvents, has very low extractables, has good thermal stability and natural hydrophilicity, and is filtered by most aqueous solutions characteristic.

The Nylon Syringe Filter produced by Aijiren is mostly used for reagent filtration or sample preparation. Nylon Syringe Filter has different specifications. The filter membrane diameter is 13mm, 25mm and 33mm, which can be selected according to the capacity of the sample. Aijiren provides 0.22μm and 0.45. Two μm specifications are convenient for customers to choose. The Nylon Syringe Filter produced by Aijiren meets customers’ requirements and needs for product preparation.

Compared with Nitrocellulose membrane (NC membrane), PVDF membrane has many advantages. PVDF membrane has high mechanical strength, is not easy to break or curl; it has the advantages of low background, wide solvent compatibility, and excellent coloring ability; in addition, PVDF membrane can be repeatedly tested after proper treatment.
