MCE Syringe Filter is generally used to filter neutral or partial neutral aqueous solutions, and can be used as experimental sample clarification filtration, liquid chromatography injection filtration and so on. Not suitable for filtering organic solvents and strong acid and alkali solutions. This filter is for one-time use, filtering about 10 ml at a time (specifically, there is a big difference according to the impurities of the filtered liquid), and the filter membrane cannot be disassembled. 0.45¦Ìm can remove conventional impurities and some bacteria visible to the naked eye. Generally used in conjunction with the syringe.

The PTFE syringe filter is tritium-free and has a two-way membrane support and Luer lock inlet/outlet and a safe and suitable syringe. The membrane type and pore size are printed on each filter for easy identification. All Aijiren syringe filters are 100% integrity tested and comply with ISO 9002 standards. The sterilizing filter is sterilized with gamma rays. And detect no pyrogen, no cytotoxicity.

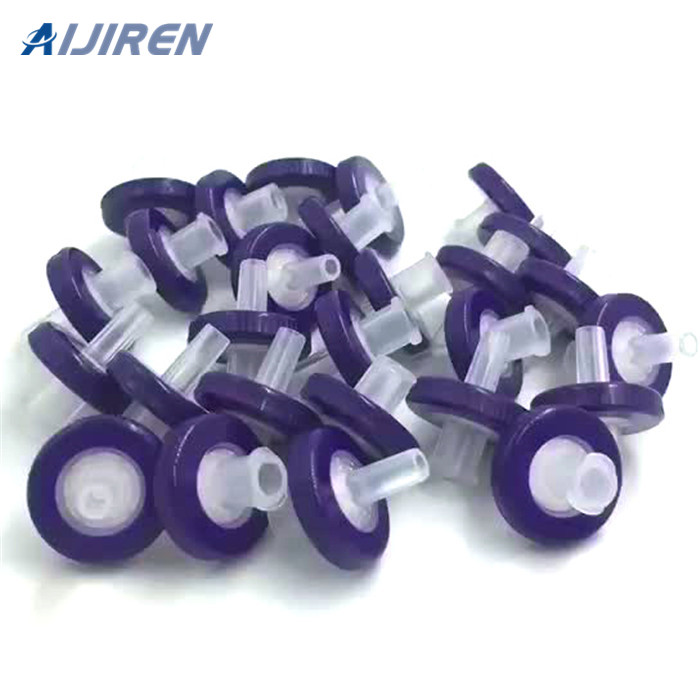

PTFE Syringe Filters consist of a polytetrafluoroethylene (PTFE) membrane and a polypropylene overmolded housing. Available in 13 mm and 25 mm diameters and 0.22 μm and 0.45 μm pore sizes. PTFE is the membrane of choice for use with aggressive solvents, liquids, and gases that can attack other membranes.

PES (Polyethersulfone ) syringe filter is natural hydrophilic which makes is an ideal choice (highly recommended) for aqueous solutions and alcohols. It’s not necessary to treat the filter membrane surface with wetting agents.

A syringe filter (sometimes called a wheel filter for its wheel-like shape) is a single-use membrane based filter cartridge, to be attached with a syringe to remove impurities in liquid solutions. This pre-filtration step is vital in preventing damage to instruments (e.g. liquid chromatography, ICP, etc.).

The reinforcement ring can provide greater strength to the shell to prevent leakage and bursting (30mm product pressure is rated at 120 psi). The shell is made of solvent-resistant, low-extraction polypropylene resin, specifically selected for wide compatibility with common HPLC sample matrices. The solution can be filtered at temperatures up to 100¡ãC, which is convenient and easy to use.

Customers can use sterile syringe filters to filter out particles and contamination in the fluid. Filtration requires a 0.2¦Ìm pore size to produce a sterile filtrate. The volume of the solution to be filtered varies from a few milliliters to several liters. Typical fluids may include serum-containing media, buffers, biological or protein samples, reagents, or other fluids, and need to be free of particulates or microbial contamination.

Syringe filter is a quick, convenient and reliable filter tool used routinely in the laboratory.Because they don’t need to change the membrane and filter cleaning, it’s eliminating the complex and time-consuming preparation. It is widely used in the sample pre filtration, removal of particles, aseptic filtration of liquids and gases. It is the preferred method to filter small samples before loading into HPLC and GC ,and it is often used with disposable syringe.

Aijiren’s sterile syringe filter has a bidirectional diaphragm support and Luer lock inlet/outlet, which can be securely mounted on the syringe. The type and pore size of the membrane are printed on each filter for easy identification. All Aijiren syringe filters are 100% integrity tested and manufactured according to ISO 9002 standards. The sterile filter is sterilized by gamma radiation. They are proven to be pyrogen-free, non-cytotoxic, and are blister packs.

1. The pore size of the needle-punched membrane is accurate, providing comprehensive protection for your instrument and chromatographic column
2. There is a clear label on the Nylon syringe filter to avoid confusion
3. The luer interface of the needle filter with lock can prevent the filter from flying out due to excessive pressure

PTFE Syringe Filters are universal filters that are inert to a wide variety of aggressive solvents and strong acids and bases. These syringe filters can also be exposed to high temperatures and are an excellent choice for HPLC sample preparation. We offer PTFE syringe filters in both their hydrophobic and hydrophilic states.

Cellulose Acetate Syringe Filter Surfactant-free membrane for cleanliness in downstream applications, Filter type printed on the filter for ease of identification, Convenient, larger pack sizes,Gamma sterilised.

Features of the syringe filter: Luer lock inlet provides a sealed syringe connection, with various filter types, porosities and diameters. Color coding is easy to identify. Rugged polypropylene shell. Can be autoclaved to 121℃ for 15 minutes. The quantity exceeds the minimum order quantity to save more.

In HPLC analysis, the particle size of the chromatographic column packing is small and it is easy to be blocked by impurity particles. Therefore, samples and solvents need to be filtered in advance to remove particulate contaminants and protect the instrument. Ion chromatography, which is commonly used in environmental analysis, also requires that no inorganic pollutants be introduced in sample pretreatment.

These syringe filters feature a user-friendly design that allows for easy and efficient filtration. They are compatible with standard luer-lock syringes, providing a secure and leak-free connection. The nylon membrane has a small pore size, typically ranging from 0.2μm to 0.45μm, enabling efficient removal of contaminants while retaining the desired analytes. The filters provide high flow rates and low protein binding, making them suitable for a variety of sample types.

13mm, 25mm 0.22um, 0.45um hydrophobic PVDF (polyvinylidene fluoride) membrane syringe filter is a filtration device commonly used in laboratory settings to remove particulates and microorganisms from fluids.
It’s important to note that specific details of hydrophobic PVDF membrane syringe filters, such as pore size, diameter, and filtration capacity, can vary between manufacturers and product lines.
Therefore, it’s recommended to consult the product specifications or contact the supplier for precise information about the syringe filters you are considering for your specific application.

PP housing membrane syringe filter refers to a syringe filter wif a housing made of polypropylene (PP).

Polypropylene is a commonly used material for syringe filter housings due to its chemical compatibility, low extractables, and resistance to a wide range of solvents. PP housings provide structural support to teh filter membrane and help maintain its integrity during filtration.
These syringe filters find applications in various fields such as pharmaceuticals, biotechnology, environmental analysis, food and beverage testing, and research laboratories where precise filtration is required to ensure sample purity and integrity.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

Syringe filter is a quick, convenient and reliable filter tool used routinely in the laboratory.Because they don’t need to change the membrane and filter cleaning, it’s eliminating the complex and time-consuming preparation. It is widely used in the sample pre filtration, removal of particles, aseptic filtration of liquids and gases. It is the preferred method to filter small samples before loading into HPLC and GC ,and it is often used with disposable syringe.

Aijiren Syringe Filter is a comprehensive range of non-sterile disposable syringe filters for reliable sample pre-treatment. Reproducible membrane quality and automated manufacturing processes ensure particles are removed from all samples, extending the life of analytical columns and minimizing injection port and valve damage. The Aijiren syringe filter is available in 0.22um and 0.45um porosity, 4, 13, 25 and 30mm diameters.

Many different types of materials are used in syringe filters. A variety of materials, diameters, pore sizes, and in sterile and non-sterile options are on our list. These syringe filters offer outstanding microfiltration for applications in HPLC, water treatment, environmental, biotechnology, beverages, food, pharmaceuticals, and other fields related.

Another way to determine the micron size of columns, 0.45 um for >3 um, and 0.22 um for <3um. 0.45 um membranes are typically used for general filtration and particle removal while 0.2/0.22um membranes, or sterilizing-grade membranes, are most commonly used for solution sterilization (bacteria removal).

Our Syringe Filters are high quality, well packaged and sold at a fair competitive price. They are available in most of the major membrane materials including Nylon, PTFE, PES, MCE, PVDF, CA, PP, and GF which are supplied in 13mm, 17mm, 25mm and 30mm formats in virgin polypropylene housings.

PES syringe filter membrane has the characteristics of high mechanical strength, it can handle high temperature liquid, and has a large flow rate (better than PTFE), and low protein binding force. With these functions, PES syringe filters can provide excellent performance for biological samples and culture media. The usable pH range is about 3-14.

UHPLC Precolumn Filter
• Economical protection against microparticles.
• Extend UHPLC column lifetime.
• Negligible effect on column performance.
• Universal fit—easily connects directly to any brand column.
• Leak tight to 15,000 psi (1,034 bar).
• Does not contribute to system backpressure.
• Does not contribute to band broadening.

Aijiren’s PVDF syringe filter has hydrophilicity and good chemical compatibility. They can bring precision to your research and ensure the highest level of performance. Our filter series are designed with female Leur-lock inlet and male Leur-slip outlet. In addition, these filters have better mechanical resistance and can withstand high temperatures.

Membrane separation technology is hailed as “one of the most promising high-tech developments in the middle of the 21st century”. Among them, microporous membrane separation is the most eye-catching application in the fields of biology, chemical analysis and pharmaceuticals. There is no need to change the membrane and clean the filter, save the complicated and time-consuming preparation work, and is widely used in the laboratory.
