PES Yellow Syringe Filter

Use Aijiren CA syringe filter to remove interfering substances and fine particles to the rated pore size, thereby obtaining a cleaner sample extract. Cellulose acetate (CA) syringe filters are ideal for filtering tissue culture media and filtering sensitive biological samples. Adding a syringe filtration step before chromatographic injection not only helps to ensure more consistent and reliable results, it also helps protect the instrument and extend the life of the column. Economical choice Syringe filters are available in a variety of sizes and membrane types to meet the needs of any application.

UHPLC Precolumn Filter
• Economical protection against microparticles.
• Extend UHPLC column lifetime.
• Negligible effect on column performance.
• Universal fit—easily connects directly to any brand column.
• Leak tight to 15,000 psi (1,034 bar).
• Does not contribute to system backpressure.
• Does not contribute to band broadening.

Polyethersulfone (PES): Hydrophilic, stable in low pH, have low levels of extractables, and exhibit low protein binding, making them suitable for many aqueous and organic solvents. PES membranes allow higher liquid flow than PTFE. Temperature resistant. pH range ~3-14 (sometimes quoted as 1-14).

This nylon membrane can be used for alkaline blotting and fixation, but if fixing methods such as baking and ultraviolet rays are used, higher nucleic acid detection sensitivity can be obtained. Since the nylon membrane is a hydrophilic membrane, it does not need to be immersed in ethanol, methanol and other solutions for activation. This product is only for scientific research by professionals, and must not be used for clinical diagnosis or treatment, or used for food or medicine, and must not be stored in ordinary residences. For your safety and health, please wear lab coats and disposable gloves for operation.

Aijiren’s PVDF syringe filters are hydrophilic in nature and have strong chemical compatibility. They can bring precision to your research and ensure the highest level of performance. Our filter range is designed with female leur-Lock imports and male Leur-slip exports. In addition, these filters have better mechanical resistance and it can withstand high temperatures.

PTFE Syringe Filters are universal filters that are inert to a wide variety of aggressive solvents and strong acids and bases. These syringe filters can also be exposed to high temperatures and are an excellent choice for HPLC sample preparation. We offer PTFE syringe filters in both their hydrophobic and hydrophilic states.

PES syringe filter has the characteristics of hydrophilicity, low protein binding, high flow rate and good chemical stability. In addition, it also contributes to oxidation stability, high heat and low concentration of extractable elements. Aijiren’s PES syringe filters are ideal for ion chromatography, tissue culture filtration, protein, nucleic acid and high temperature liquid filtration. It helps you get accurate results in sensitive analysis of ionic analytes.

The Syringe Filters are suitable for a wide range of applications in pharmaceutical, biotechnology, environmental, and research laboratories. From sterilizing and clarifying liquids to removing particulates prior to analysis, these filters are versatile tools that can enhance the quality

Among the many medium types of Syringe Filters produced by Aijiren, Polypropylene Syringe Filter is a special one. Because Polypropylene is often used to make the shell of Syringe Filter, there are fewer types of membranes made of Polypropylene. Aijiren finally decided to use this material to produce Syringe Filter after studying the production materials of many different manufacturers and the usage of different customers.

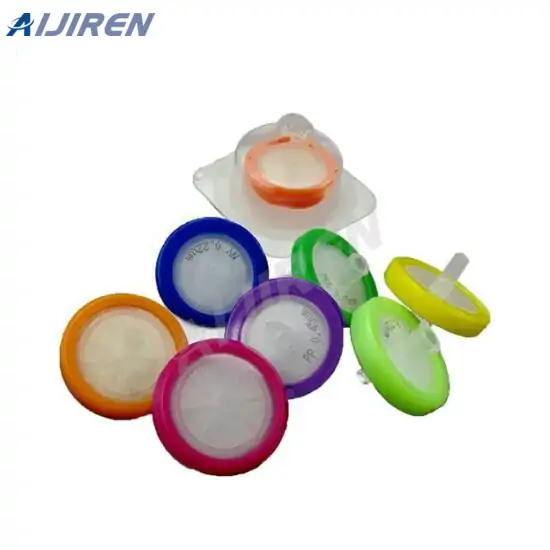

Our syringe filters are high quality, packaged and sold at fair competitive prices. They are available in most of the major membrane materials including nylon, PTFE, PES, MCE, PVDF, CA, PP, and GF, and are available in 13mm, 17mm, 25mm and 30mm formats for virgin polypropylene housings.

The advantages of Syringe Filter: The low extractable membrane and shell ensure that no filter contaminants are added to your samples. Aijiren performs performance tests under actual HPLC conditions. The integrated 1mm borosilicate glass prefilter (30mm device) ensures higher confidence in samples with high solids content.

Nylon has excellent flow characteristics, extremely low extractable level and mechanical stability, and can provide the best combination of physical parameters to meet the most stringent analysis requirements of 13mm, 25mm and 33mm diameters. Nylon’s natural hydrophilicity, high protein binding capacity and high dirt adsorption capacity are natural advantages.

Hydrophilic nylon membranes have extremely low levels of extractables and contain no wetting agents. They offer good chemical resistance and are ideal for aqueous and most organic samples. Filters are Triton-free and have a bidirectional membrane support and luer lock inlet/outlet for a secure fit to the syringe. Membrane type and pore size are printed on each filter for easy identification. All Cole-Parmer syringe filters are 100% integrity tested and manufactured in accordance with ISO 9002 standards. Sterile filters are sterilized by gamma radiation. They are certified nonpyrogenic, noncytotoxic, and are blister packed.

Aijiren PP syringe filter
Product Model: 25mm,0.22um Sterilization Independent Packaging
Application: sterilize and filter the aqueous solution
Operating temperature: 45¡ãC
Inlet pressure: bar (psi): 5.2 (75)
Wettability: hydrophilic
Filter membrane diameter: 25mm
Membrane aperture: 0.22um

Aijiren manufactures a Syringe Filter that comes in a number of different membranes, PTFE membranes are hydrophilic and inert and fit many different types of agents, the details below contain the chemicals compatible with the PTFE Syringe Filter. In addition, the article number and specific specifications of Aijiren PTFE have been clearly described. If you have any needs, please leave a comment below for inquiry.

They are also very useful in the protection of vacuum pump pipelines and have the qualities of high absorption and retention capacity. Due to their advantages, these syringes can be used in laboratory situations as well as industrial applications.

PVDF syringe filters are made of hydrophilic PVDF membrane and a polypropylene overmold housing. Available in 13 mm and 25 mm diameters and 0.22 μm and 0.45 μm pore sizes.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

13mm, 25mm 0.22um, 0.45um hydrophobic PVDF (polyvinylidene fluoride) membrane syringe filter is a filtration device commonly used in laboratory settings to remove particulates and microorganisms from fluids.
It’s important to note that specific details of hydrophobic PVDF membrane syringe filters, such as pore size, diameter, and filtration capacity, can vary between manufacturers and product lines.
Therefore, it’s recommended to consult the product specifications or contact the supplier for precise information about the syringe filters you are considering for your specific application.

Filter sterilization, that is, removing microorganisms by physical means such as screening or filter material adsorption, is a commonly used method of sterilization. The filtration method is widely used, and some materials that need to be sterilized cannot be heated, such as many vitamin solutions. In addition to being used in the production of beverages and drugs, the air is often sterilized by filtration. When we usually do microbiology experiments, the sterilized container is usually plugged with cotton at the outlet, which is actually filtering to remove microorganisms in the air, so that there is no microbial contamination in the air entering the container.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. Therefore, samples and solvents must be pre-filtered to remove particulate contaminants and protect the instrument.

The use of PTFE syringe filters can be used for corrosive solvents, aerosol sampling, degassing agents, exhaust applications and organic-based HPLC filtration. The syringe filter has a variety of different filter covers, and has a wide range of chemical compatibility, and has strong chemical stability and inertia.

Membrane: HPLC Certified Nylon
Use with: Bases, Most HPLC solvents, Alcohols, Aromatic Hydrocarbons, THF.
Don¡¯t use with: Acids, Aggressive Halogenated hydrocarbons, protein samples (Nylon is a high binder)
Sterilization: Syringe filters can be sterilized by autoclave at 125¡ã for 15 minutes.
Applications: General Laboratory filtration, most HPLC samples

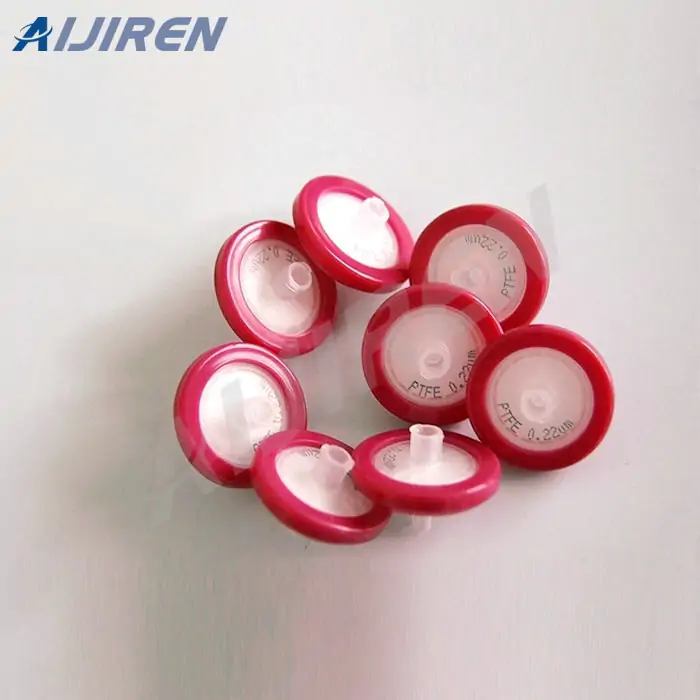

PTFE syringe filters are made of Polytetrafluoroethylene (PTFE) membrane and a polypropylene overmold housing.

Hydrophobic PTFE (Polytetrafluoroethylene) syringe filters are suitable for gaseous and organic solutions, with excellent performance for high corrosive samples. It is possible for an extended sampling range using hydrophobic PTFE filters for wider chemical resistance to aggressive substances and outstanding temperature stability. A PTFE syringe filter is an ideal choice for filtering and de-gassing chromatography solvents.

13 mm Syringe Filters: For sample volumes <10 mL range; Ideal choice for most applications; Holdup (dead) volume is <15 ul; Female inlet luer lock; Maximum operation pressure <15 bar; Bubble point: Hydrophilic 2-3 bar; Hydrophobic 1-1.2 bar.

The syringe filter produced by Aijiren is the preferred method for filtering small samples before being loaded into HPLC and GC, and is usually used with disposable syringes to filter out impurities in the sample to ensure that there is no quality in the test Problems and affect the experimental results.

The nylon membrane of the syringe filter should be compatible with the chemical characteristics of the sample. The nylon membrane should be compatible with various water-based and organic solvents. The membrane should also have high resistance to HPLC solvents and chemicals. The 0.45mm aperture ensures that you have enough capacity and throughput to process samples efficiently and quickly.

PES syringe filter is mainly used for filtering and sterilizing liquid samples of small volume samples such as a small amount of buffers, protein solutions, additives, various reagents or drugs, and removing particles. It is also the first choice for sterilization and filtration of small samples of HPLC and GC. method.
