Nylon /PTFE /PES/MCE/ PVDF/ CA Syringe Filters in the Lab

Syringe Filters with hydrophobic PTFE membranes can be used for filtration of strong solvents, acids and alkalis. Not suitable for filtration of aqueous liquids. Filters with hydrophilic PTFE can be used for filtration of strong solvents, acids and alkalis. However, these syringe filters can also be used for the filtration of aqueous liquids, which makes this type very versatile.

These syringe filters feature a user-friendly design that allows for easy and efficient filtration. They are compatible with standard luer-lock syringes, providing a secure and leak-free connection. The nylon membrane has a small pore size, typically ranging from 0.2μm to 0.45μm, enabling efficient removal of contaminants while retaining the desired analytes. The filters provide high flow rates and low protein binding, making them suitable for a variety of sample types.

Aijiren manufactures a Syringe Filter that comes in a number of different membranes, PTFE membranes are hydrophilic and inert and fit many different types of agents, the details below contain the chemicals compatible with the PTFE Syringe Filter. In addition, the article number and specific specifications of Aijiren PTFE have been clearly described. If you have any needs, please leave a comment below for inquiry.

Instructions for use and precautions:
1. It must be used with disposable syringes and glass syringes. The interface is standard. Put the needle filter on the syringe first, then pour the liquid into the syringe, press the push rod down, and collect the filtered liquid.
2. Do not use a syringe smaller than 10cc, because the small-volume column may cause the pressure to exceed the upper limit and cause damage to the filter membrane.
3. Only for laboratory use, one-time use, non-renewable.
4. The filtrate at the beginning of the part should be discarded. The volume is about the dead volume of the filter. Taking 25mm as an example, discard the first 1mL filtrate; or pre-clean the filter with 1 to 2mL of solution.

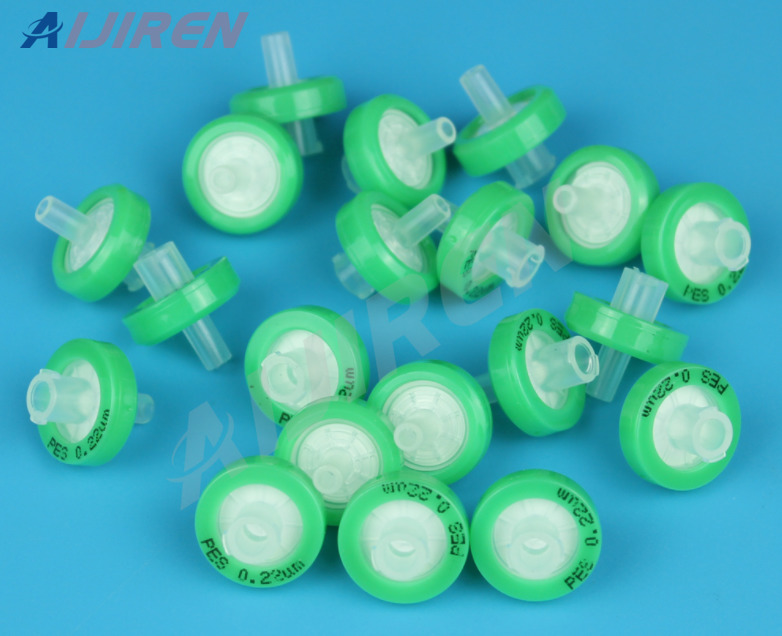

PES (Polyethersulfone ) syringe filter is natural hydrophilic which makes is an ideal choice (highly recommended) for aqueous solutions and alcohols. It’s not necessary to treat the filter membrane surface with wetting agents.

They are also very useful in the protection of vacuum pump pipelines and have the qualities of high absorption and retention capacity. Due to their advantages, these syringes can be used in laboratory situations as well as industrial applications.

The nylon membrane of the syringe filter should be compatible with the chemical characteristics of the sample. The nylon membrane should be compatible with various water-based and organic solvents. The membrane should also have high resistance to HPLC solvents and chemicals. The 0.45mm aperture ensures that you have enough capacity and throughput to process samples efficiently and quickly.

Another way to determine the micron size of columns, 0.45 um for >3 um, and 0.22 um for <3um. 0.45 um membranes are typically used for general filtration and particle removal while 0.2/0.22um membranes, or sterilizing-grade membranes, are most commonly used for solution sterilization (bacteria removal).

The hydrophobic PTFE membrane has extensive chemical compatibility and very low dissolution, and is currently the most chemically resistant membrane among all filter membranes. Aijiren’s innovative design allows the PTFE filter to achieve a perfect balance between the increase in effective filtration area and the decrease in sample retention volume. The filter can withstand higher operating pressures, effectively avoiding leakage.

The shell of PTFE Syringe Filter is made of polypropylene (PP) with excellent chemical stability. It is made of different colors, which is convenient for users to distinguish products of different materials and avoid confusion. The filter membrane adopts imported high-performance filter membrane with stable product quality and good reproducibility. It is an ideal choice for laboratory filtration of samples. The standard interface is convenient to connect to various syringes, and it can also be directly connected to the needle of the 7725 valve, and the sample can be injected directly after filtration.

The syringe filters are available in various pore sizes and membrane materials to accommodate different filtration requirements. They are suitable for a wide range of laboratory applications, including sample preparation, clarification, and sterilization. The filters provide reliable performance and consistent filtration results, contributing to accurate and reproducible data in analytical chemistry, microbiology, and other fields.

Aijiren Syringe Filter is a comprehensive range of non-sterile disposable syringe filters for reliable sample pre-treatment. Reproducible membrane quality and automated manufacturing processes ensure particles are removed from all samples, extending the life of analytical columns and minimizing injection port and valve damage. The Aijiren syringe filter is available in 0.22um and 0.45um porosity, 4, 13, 25 and 30mm diameters.

Designed to be compatible for the use on all common automated filtration systems, Standard syringe filters are color coded. Aijiren syringe filters are labeled for method validation and certification. All syringe filters are autoclavable (121 ¡ãC and 1.1 bar for 30 min).

Our syringe filters are made from high-purity polytetrafluoroethylene (PTFE) membrane for superior performance and durability. PTFE is an ideal material for HPLC applications with excellent chemical compatibility, low protein binding, and minimal analyte adsorption. This ensures sample integrity for accurate, reproducible results.

Aijiren’s products enable pharmaceutical companies to increase productivity. Syringe filters and vials reduce HPLC sample preparation time and consumables usage, and track-etched and membranes are also vital to extruding liposomes for encasing and targeting drugs.

Characteristics of PVDF Syringe Filters:
Hydrophilic
Low protein binding
Good chemical compatibility and low extractable
Superior mechanical resistance
Higher resistance to temperature

PP housing membrane syringe filter refers to a syringe filter wif a housing made of polypropylene (PP).

Polypropylene is a commonly used material for syringe filter housings due to its chemical compatibility, low extractables, and resistance to a wide range of solvents. PP housings provide structural support to teh filter membrane and help maintain its integrity during filtration.
These syringe filters find applications in various fields such as pharmaceuticals, biotechnology, environmental analysis, food and beverage testing, and research laboratories where precise filtration is required to ensure sample purity and integrity.

A syringe filter (sometimes called a wheel filter for its wheel-like shape) is a single-use membrane based filter cartridge, to be attached with a syringe to remove impurities in liquid solutions. This pre-filtration step is vital in preventing damage to instruments (e.g. liquid chromatography, ICP, etc.).

Compressed sterile air filters can be used to create clean rooms free of bacteria and other harmful particles for people with compromised immune systems. Each air supply pump is also equipped with a sterile air filter to ensure the delivery of pollution-free air. These air filters are usually sterilized by gamma rays and packaged separately.

Syringe filter is a small, disposable device used for filtering liquids or gases.It consists of a plastic housing with a membrane filter at one end and a female luer lock or luer slip connection at the other end, which allows it to be attached to a syringe or other fluid delivery system.
Syringe filters are commonly used in laboratory and research settings to remove particles, microorganisms, or other impurities from samples before analysis or further processing. The membrane filter in a syringe filter acts as a barrier, allowing only the desired components of the sample to pass through while retaining any larger particles or contaminants.
The choice of membrane material depends on the nature of the sample and the substances to be filtered.

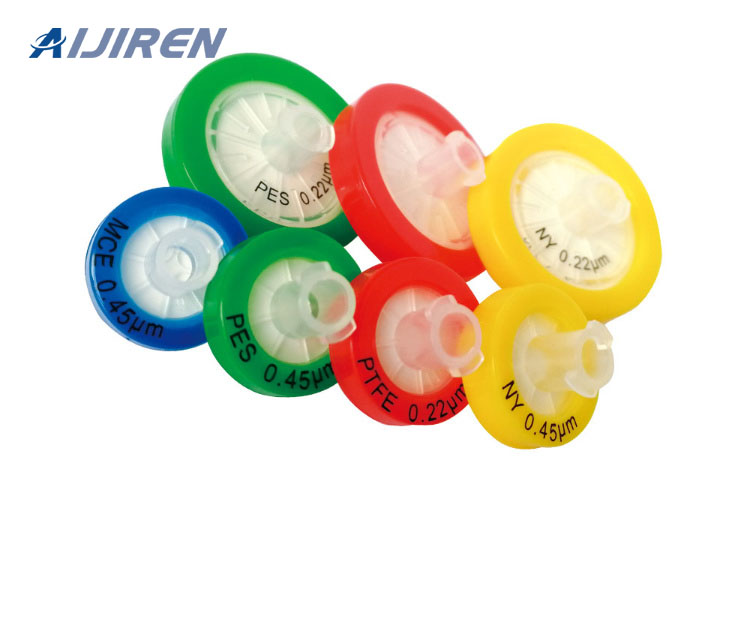

Aijiren’s Syringe Filters are high quality, well packaged and sold at a fair competitive price. They are available in most of the major membrane materials including Nylon, PTFE, PES, MCE, PVDF, CA, PP, and GF which are supplied in 13mm, 17mm, 25mm and 30mm formats in virgin polypropylene housings.

Syringe filter is a quick, convenient and reliable filter tool used routinely in the laboratory.Because they don’t need to change the membrane and filter cleaning, it’s eliminating the complex and time-consuming preparation. It is widely used in the sample pre filtration, removal of particles, aseptic filtration of liquids and gases. It is the preferred method to filter small samples before loading into HPLC and GC ,and it is often used with disposable syringe.

Filter sterilization, that is, removing microorganisms by physical means such as screening or filter material adsorption, is a commonly used method of sterilization. The filtration method is widely used, and some materials that need to be sterilized cannot be heated, such as many vitamin solutions. In addition to being used in the production of beverages and drugs, the air is often sterilized by filtration. When we usually do microbiology experiments, the sterilized container is usually plugged with cotton at the outlet, which is actually filtering to remove microorganisms in the air, so that there is no microbial contamination in the air entering the container.

Sterile syringe filters are syringe-operated filters for the clarification of aqueous solutions (column eluate, tissue culture additives, HPLC samples, etc
