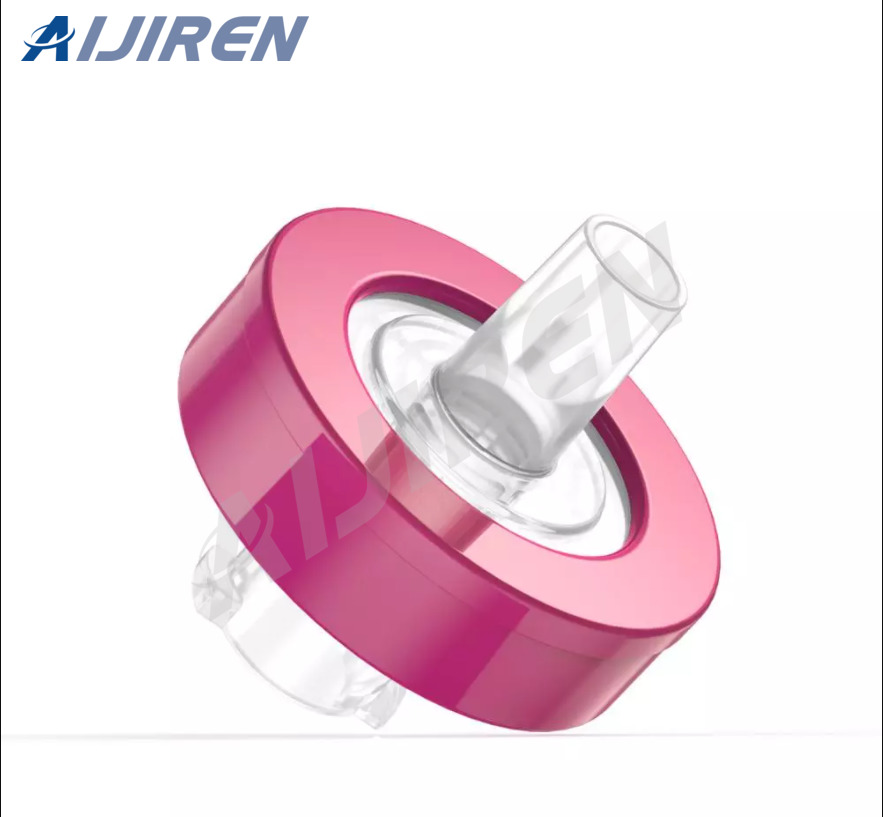

25mm Syringe Filter

PP housing membrane syringe filter refers to a syringe filter wif a housing made of polypropylene (PP).

Polypropylene is a commonly used material for syringe filter housings due to its chemical compatibility, low extractables, and resistance to a wide range of solvents. PP housings provide structural support to teh filter membrane and help maintain its integrity during filtration.
These syringe filters find applications in various fields such as pharmaceuticals, biotechnology, environmental analysis, food and beverage testing, and research laboratories where precise filtration is required to ensure sample purity and integrity.

Syringe filter is a disposable device used in laboratory settings to filter small volumes of liquid samples. It is commonly utilized to remove particulate matter and microorganisms from solutions before analysis or to protect sensitive instruments from contamination.
Syringe filters consist of a plastic housing with a membrane filter at one end and a female luer lock or luer slip connection at the other end. The filter membrane is typically made of materials such as nylon, polyethersulfone (PES), polytetrafluoroethylene (PTFE), or cellulose acetate.

Product applications: water purification, HPLC sample preparation, mobile phase solution filtration, cell culture, microbial filtration or sampling, protein precipitate removal, particle removal and monitoring, QC analysis, content consistency, dissolution testing, environmental sampling, food analysis. Generally speaking, 0.45 ¦Ìm pore size is suitable for removing particles from samples or the mobile phase solution of chromatography equipment, and 0.22 ¦Ìm is suitable for filtering microorganisms.

13 mm Syringe Filters: For sample volumes <10 mL range; Ideal choice for most applications; Holdup (dead) volume is <15 ul; Female inlet luer lock; Maximum operation pressure <15 bar; Bubble point: Hydrophilic 2-3 bar; Hydrophobic 1-1.2 bar.

A syringe filter (or wheel filter) is a single-use, membrane-based device used for the removal of particulate impurities from small (≤ 100 mL) liquid samples. Selected based upon the desired end application, disposable syringe filters are commonly used in labs for fast and efficient filtering, material purification, or even sterilization.

These syringe filters feature a user-friendly design, allowing for convenient and hassle-free filtration. They are compatible with standard luer lock syringes, enabling simple attachment and detachment. The filters come pre-sterilized and individually packaged, ensuring convenience and minimizing the risk of contamination.

The nylon membrane used in the syringe filter has high mechanical strength, chemical stability, can be tolerated by most organic solvents, has very low extractables, has good thermal stability and natural hydrophilicity, and is filtered by most aqueous solutions characteristic.

Aijiren’s PVDF membrane (imported packaging, 6.6¡Á8.5cm, 0.2¦Ìm) is a pre-cut polyvinylidene fluoride (PVDF) imprinting membrane with a size of 6.6¡Á8.5cm and a pore size of 0.2¦Ìm. It is most commonly used for the transfer of protein from gel to membrane in immunoblot (Western blot), and can also be used for adsorption analysis, amino acid analysis, N-terminal protein sequencing, dot and slot blot detection, Glycoprotein color development and lipopolysaccharide analysis, etc.

Syringe filtration is a crucial technique in laboratory settings, playing a vital role in sample preparation for various analytical methods.

The nylon membrane of the syringe filter should be compatible with the chemical characteristics of the sample. The nylon membrane should be compatible with various water-based and organic solvents. The membrane should also have high resistance to HPLC solvents and chemicals. The 0.45mm aperture ensures that you have enough capacity and throughput to process samples efficiently and quickly.

Polyvinylidene difluoride (PVDF):?designed for high tensile strength, high solvent resistance, and low protein binding, making them suitable for biomedical filtration, sterilization filtration, and HPLC sample preparation. pH range ~1-14.

Due to the high hydrophobicity of the PVDF membrane, it needs to be soaked in an appropriate solution such as ethanol before use to achieve the purpose of activation and make the membrane easier to bind proteins. This product is compatible with many dyes, such as Ponceau-S red, Coomassie brilliantblue, Sypro ruby, Transillumination, Toluidine blue, CPTS, Colloidal gold, India inkAmido black. Among them, after dyeing with dyes such as Ponceau and CPTS, the dyes can be washed off and the film can be used for further analysis; while dyes such as Coomassie Brilliant Blue, India ink, and amide black are irreversible, the film cannot be used after dyeing. For further analysis.

Aijiren’s sterile syringe filter has a bidirectional diaphragm support and Luer lock inlet/outlet, which can be securely mounted on the syringe. The type and pore size of the membrane are printed on each filter for easy identification. All Aijiren syringe filters are 100% integrity tested and manufactured according to ISO 9002 standards. The sterile filter is sterilized by gamma radiation. They are proven to be pyrogen-free, non-cytotoxic, and are blister packs.

Sample preparation for high-throughput Ultra High Performance Liquid Chromatography (UHPLC)/High Performance Liquid Chromatography (HPLC) analysis can be time consuming when using multiple consumables such as a syringe, syringe filter, sample vial, cap, and septum. Aijiren HPLC filters result in faster sample preparation than the normal syringe filter method.

13mm, 25mm 0.22um, 0.45um hydrophobic PVDF (polyvinylidene fluoride) membrane syringe filter is a filtration device commonly used in laboratory settings to remove particulates and microorganisms from fluids.
It’s important to note that specific details of hydrophobic PVDF membrane syringe filters, such as pore size, diameter, and filtration capacity, can vary between manufacturers and product lines.
Therefore, it’s recommended to consult the product specifications or contact the supplier for precise information about the syringe filters you are considering for your specific application.

 In HPLC analysis and IC analysis, syringe filters can be used to filter sample solutions, which is an important step in sample pretreatment.

Nylon membrane has high strong mechanical strength, chemical stability, can be tolerated by most organic solvents, extremely low in extractables, good thermal stability (up to 50¡ãC), natural hydrophilic and the majority of water solution filter characteristics. It more often applied to the common organic solvent HPLC mobile phase filtering.

In HPLC analysis, the particle size of the chromatographic column packing is small and easily blocked by contaminant particles. t. In HPLC analysis and IC analysis, syringe filters can be used to filter sample solutions, which is an important step in sample pretreatment.

Features of MCE: uniform pore size, thin texture, low flow resistance, high filtration speed, low absorption, all items are quality tests for filter efficacy and housing integrity. The housing is pressure tested and can withstand pressures up to 75 psig (5.0 bar). Some filters are individually packaged aseptic packaging, certified, RNase, DNase and DNA free, and non-pyrogenic.

Aijiren’s syringe filters and vials reduce HPLC sample preparation time and the use of consumables, and the track-etched membrane is also essential for extruding liposomes for encapsulation and targeted drugs.

The syringe filter has the following characteristics:
1. Convenient, readily available, easy to operate, economical and practical.
2. Reliable bacteria retention efficiency ensures the filtering and sterilization effect.
3. Larger effective membrane filtration area: 1.09cm2.
4. High flow rate, high throughput, dead volume no more than 10¦Ìl.
5. Very low protein adsorption.
6. Pass HPLC dissolution test.

A syringe filter is a quick, convenient and reliable filter tool used routinely in the laboratory. Because they don’t need to change the membrane and filter cleaning, it’s eliminating the complex and time-consuming preparation.

Aijiren’s membrane materials are supplied by the best names in the industry and the ISO9000 certified manufacturing is carried out to the highest standards, in certified clean room conditions, using the latest manufacturing technology to ensure a high quality, consistent product. All the syringe filters are HPLC certified.
